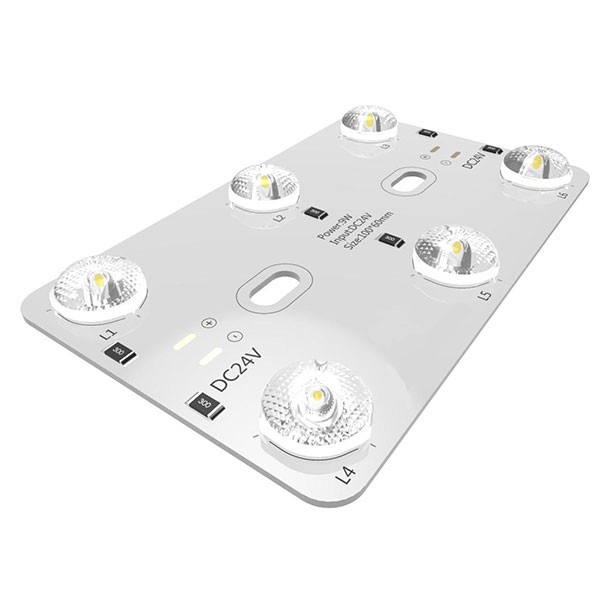

6-LED 9W SMD2835 Backlit module

※ Adopting high quality SMD2835 big-size chip as light source, high brightness, long lifespan & low light decay
※ Adopting specially-made secondary optical lens, suitable for no less than 8cm thickness light box, uniform luminance
※ Aluminum PCB with excellent heat dissipation
※ Lattice structure makes it easy & neat for installation
※ PCB board with fixed hole, convenient for positioning
※ Module can work independently and can be cut on request

EMAIL

6-LED 9W SMD2835 Backlit module


Parameter

ItemLight SourceLED Qty(pcs)Power(W)Voltage(V)Lumen(lm)
CCT(K)Beam Angle(°)IP Rate

Backlit
module

SMD283569DC 246601200-14000165IP20

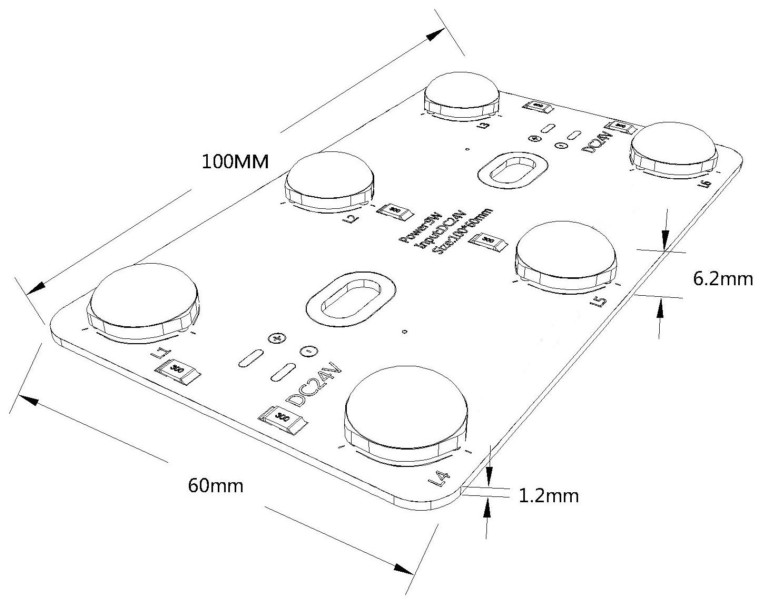

Dimension (mm)

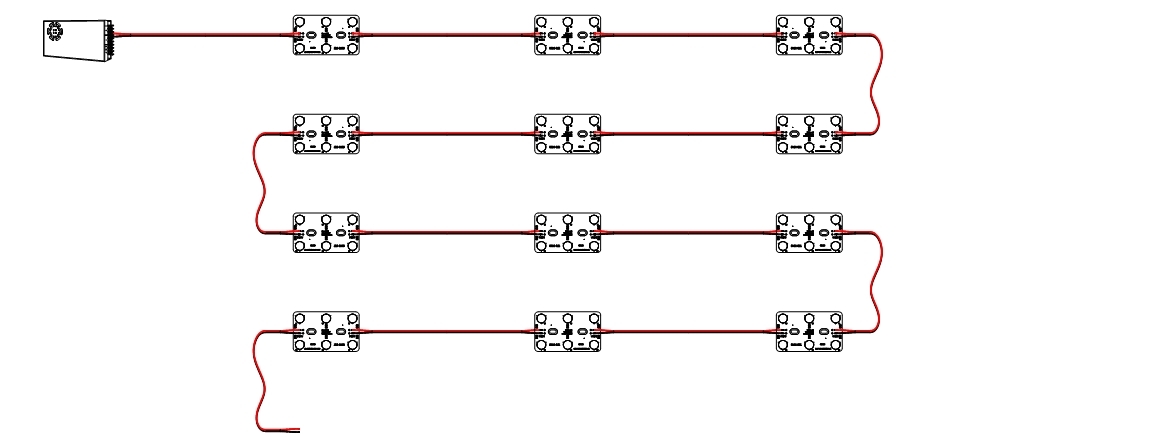

Connection Diagram

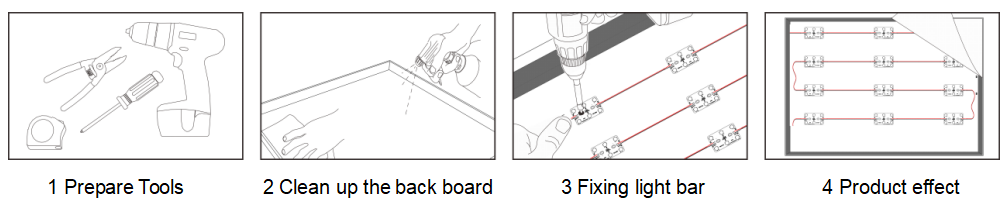

Installation Diagram
