※ Adopting high quality SMD2835 big-size chip as light source, high brightness, long lifespan & low light decay
※ Adopting specially-made secondary optical lens, suitable for no less than 4cm thickness light box, uniform luminance
※ Aluminum PCB with excellent heat dissipation
※ Lattice structure makes it easy & neat for installation
※ PCB board with fixed hole, convenient for positioning
12-LED 12W SMD2835 lattice light bar IP20
Parameter
Item | Light Source | LED Qty(pcs) | Power(W) | Voltage(V) | Lumen(lm) | CCT(K) | Beam Angle(°) | IP Rate | Dimension |
Backlit lattice | SMD2835 | 12 | 12 | DC 12 | 1080 | 1200-14000 | 165 | IP20 | 950*14.8*6.2 |

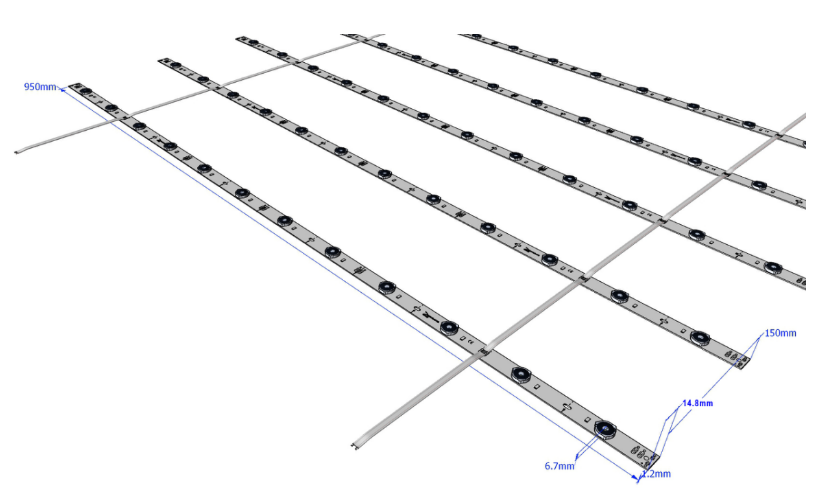

Dimension (mm)

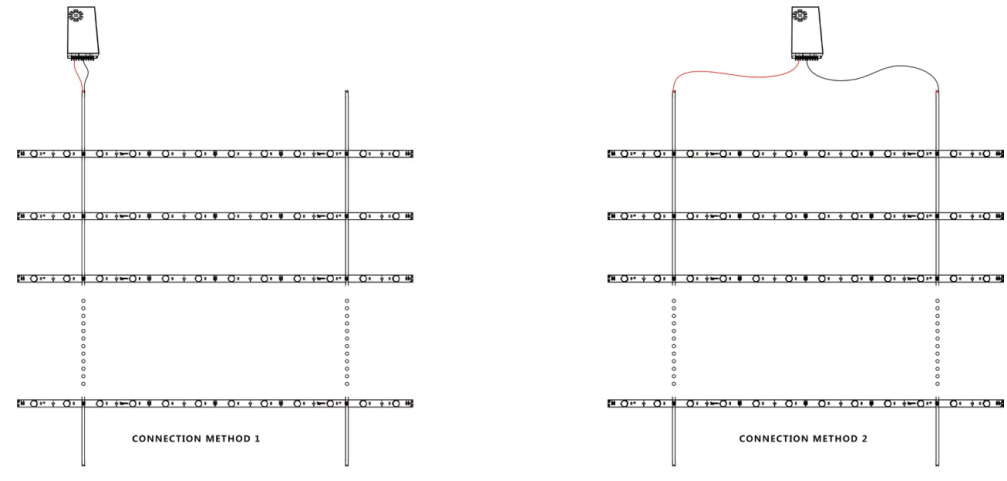

Connection Diagram

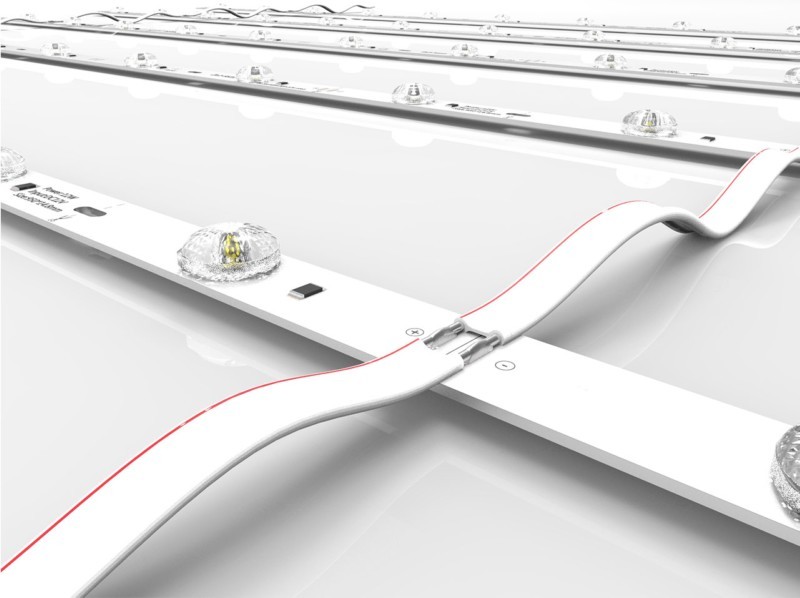

Installation Diagram
