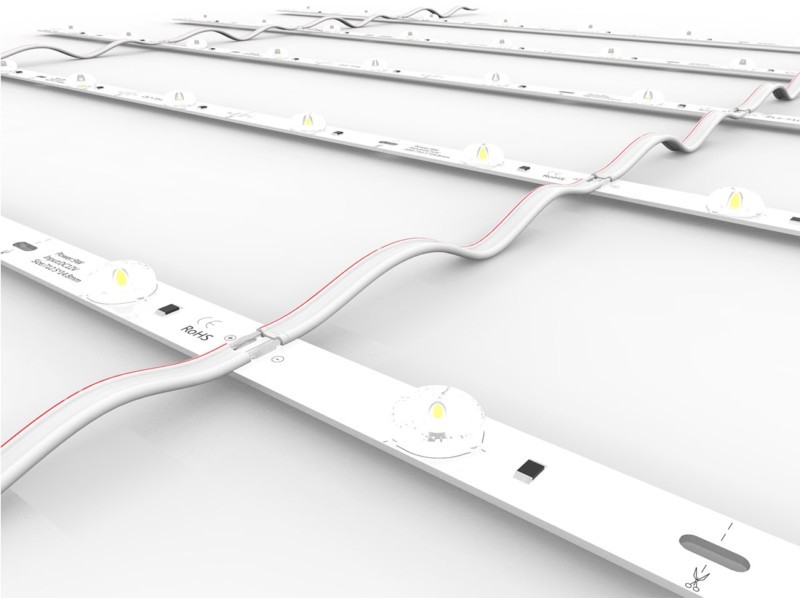

9-LED 9W SMD2835 lattice light bar IP20

※ Adopting high quality SMD2835 big-size chip as light source, high brightness, long lifespan & low light decay
※ Adopting specially-made secondary optical lens, suitable for no less than 4cm thickness light box, uniform luminance
※ Aluminum PCB with excellent heat dissipation
※ Lattice structure makes it easy & neat for installation
※ PCB board with fixed hole, convenient for positioning

EMAIL

9-LED 9W SMD2835 lattice light bar IP20


Parameter

ItemLight SourceLED Qty(pcs)Power(W)Voltage(V)Lumen(lm)
CCT(K)Beam Angle(°)IP Rate

Dimension
(mm)

Backlit lattice
light bar

SMD283599DC 128101200-14000165IP20

712*14.8*6.2

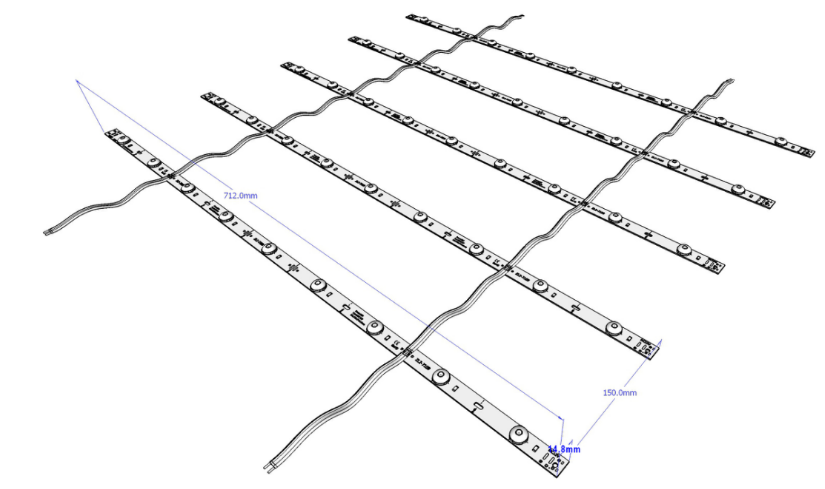

Dimension (mm)

9灯不防水 尺寸.png


Connection Diagram



Installation Diagram
